Micro Rosin Reactor

179 990.00 Kč

Compact laboratory reactor for decarboxylation with a 5″ touchscreen display and support for IDM 3.2 software. It allows for monitoring of pressure, product temperature, and the process progress during recipe development and validation. Suitable for laboratory and research environments. Available upon order; price does not include shipping.

Compact Reactor for Laboratory Decarboxylation

Precise process monitoring, recording of the process, and verification of recipes before scaling them up.

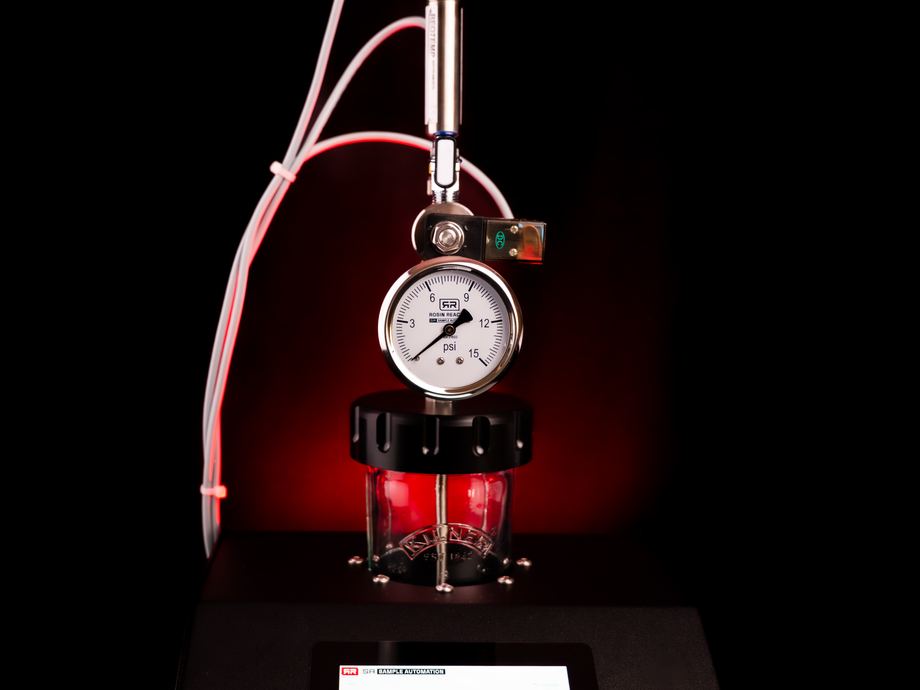

The Micro Rosin Reactor is a compact device designed for laboratory development, testing, and optimization of decarboxylation processes. Thanks to its benchtop design, touchscreen display, and support for IDM 3.2 software, it allows users to monitor the progress of individual runs and record key process parameters.

It is a suitable choice for research and development laboratories that need to validate formulations and obtain consistent data before transitioning to larger production systems.

Key Benefits

Compact desktop design —a practical solution for laboratory and R&D environments.
Continuous process monitoring – the touchscreen displays pressure, product temperature, and the number of venting cycles.
Process logging – the ability to verify recipes using the IDM 3.2 software on a computer.
Support for various types of containers —compatibility with select Mason canning jars, GLS80 laboratory bottles, and pressure-rated reactors.
Safety features —a mechanical pressure relief valve and electronic venting.
24 V DC power supply – external power supply for connection to a standard electrical outlet.

Designed for the development and validation of recipes

The Micro Rosin Reactor allows you to work with different vessel volumes on a single tabletop platform. The integrated 12.7-cm touchscreen display is used to monitor the current progress of the process. Process control and data management are handled via the IDM 3.2 software on a computer.

The display shows the current pressure, product temperature, and number of venting cycles. During automatic operation, the controls are locked so that the display is used primarily for monitoring the process.

The unit is not equipped with a mixing system or any other form of agitation.

Compatible Containers

Container Type	Maximum capacity	Pressure Rating
Mason jar, approx. 473 ml	approx. 296 ml	Not intended for use under pressure
Mason jar, approx. 710 ml	approx. 532 ml	Not intended for use under pressure
GLS80 Laboratory Bottle, 1 L	According to the manufacturer’s specifications	Not intended for use under pressure
Pressure-rated reactor, 300 ml	According to the manufacturer’s specifications	2.41 bar at 100 °C
Pressure-rated reactor, 500 ml	According to the manufacturer’s specifications	2.41 bar at 100 °C

Mason jars and GLS80 laboratory bottles are not intended for use under pressure. When selecting a container, it is essential to consider its intended use, operating limits, and the equipment manufacturer’s instructions.

Note: The reactor’s safety features do not replace the requirement to use a suitable vessel with the appropriate pressure rating. Before use, verify that the specific vessel is compatible with the given equipment configuration.

Technical Specifications

Parameter	Specifications
Heating Temperature Adjustment Range	From room temperature to 121 °C
Firmware Temperature Limit	129 °C
Pressure Relief Valve – U.S. Configuration	1.03 bar
Pressure Relief Valve – GMP Configuration	0.52 bar
Electronic Ventilation	At a pressure of 1.03 bar
Ventilation Settings	Upper limit 0.34 bar / lower limit 0.07 bar / automatic mode
Mixing	Without a mixing system
Display	Touchscreen, 12.7 cm diagonal
Data Displayed	Pressure, product temperature, number of vents
Device Power Supply	24 V DC, 10 A
Power Supply Input Voltage	100–240 V AC
Device Dimensions	approx. 483 × 305 × 305 mm
Inert gas	Food-grade nitrogen via a low-pressure regulator
Control Software	IDM 3.2 for PC

Technical Documentation

A product overview of the equipment is available. A dimensional drawing showing the overall layout, a 3D view, weight, dimensions, and connection requirements will be added once it is provided by the manufacturer.

Micro Rosin Reactor – Process Control in a Compact Design

The Micro Rosin Reactor is a solution for laboratories and R&D facilities that need to monitor the decarboxylation process, record process parameters, and systematically validate formulations before potentially scaling them up.

With its compact design, integrated monitoring display, and IDM 3.2 software, it offers a practical platform for laboratory development and process control.

Are you interested in the Micro Rosin Reactor?

Please contact us for information on availability, configuration, and delivery options.

This product is available by special order. The price does not include shipping costs. For more information about availability, shipping costs, and ordering terms, please contact us directly at hello@ogcrush.com.
